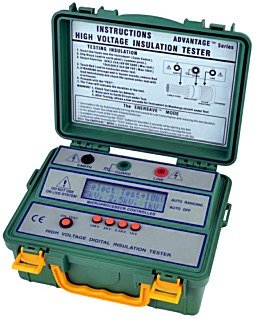

● Microprocessor-controlled. ● Four insulation test voltages. ● Insulation resistance; auto ranging on all ranges. ● Measures insulation time test. ● Bargraph indicates test voltage; rise and decay can be observed during tests. ● Visual and audible warning if external voltage is present. ● EnerSave™ feature to extend battery life. ● 2 Lines × 16 characters large LCD. ● Low battery consumption. ● Low battery indicator. ● Overload protection. ● Auto-off. ● Show test time duration (up to 99.9s) for easy comparison. ● EEPROM calibration.
SPECIFICATIONS
Test voltage (DC V)
1kV / 2.5kV / 5kV / 10kV
Measuring ranges (Auto-Ranges)
0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
Accuracy
±5% rdg
Output power limit
1W
Sealed with gasket
ˇ
Insulation resistance between electrical circuit and housing : 2000MΩ / 2000V
ˇ
Withstand voltage: 7000 Vac for one min. between electrical circuit and case
