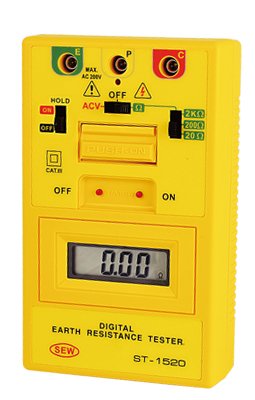

Sew ST-1520

● Capable of measuring earth resistance and earth voltage.
● 2mA measuring current permits the testing of earth
   resistance without tripping earth leakage current
   breakers in the circuit under test.
● Auto power off function.
● The timer operates automatically for about three to five minutes
   when the "PUSH BUTTON SWITCH" and "TIMER ON BUTTON"
   are pressed together. This will keep test "ON" for the duration of the
   timer.
● Timer for test function (count 3-5 minutes).
● Battery operated.
● Data hold function.
● Small and light weight.
● Calibration performed with supplied test leads.

  SPECIFICATIONS


Measuring ranges Earth resistance
0-20Ω / 0-200Ω / 0-2000Ω
Earth voltage
0-200 Vac (40-500Hz)
Accuracy Earth resistance
±(2%rdg+2dgt) or ±0.1Ω, which is greater
Earth voltage
±(1%rdg+2dgt)
Earth resistance
resolution
0-20Ω : 0.01Ω
0-200Ω : 0.1Ω
0-2000Ω : 1Ω
Measuring system Earth Resistance by constant current
inverter 820Hz approx. 2mA.
Display 3½ digit (2000 counts)
Open circuit
indication
LED will be unlit
Low battery
indication
“ B “symbol appears on the display
Data hold
indication
“ DH “symbol appears on the display
Over range
indication
“1”(MSD)
Dimensions 163(L) × 100(W) × 50(D)mm
Weight
(battery included)
Approx. 480g
Power source 1.5V (AA) × 6
